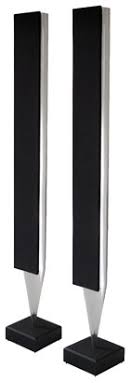

📋 A NOTE FROM MY WORKBENCH: The BeoLab 8000 (1992-2006) is an active 2-way speaker with built-in amplifiers: 70W for the woofer, 30W for the tweeter. Over time, electrolytic capacitors dry out, the 5-inch driver foam surround rots, and Power Link communication fails. I have restored hundreds of these iconic speakers and know every revision.
⚠️ CRITICAL WARNING – BEO-LAB 8000 COMMON ISSUES: (1) 5-inch mid/bass foam surround disintegrates after 15-20 years. (2) Amplifier capacitor failure causes weak output, distortion, or no sound. (3) Power Link auto-sense fails, preventing the speaker from turning on/off with the system.
Complete BeoLab 8000 Restoration Services
🔍 Full Diagnostic & Testing Amplifier health, driver impedance, Power Link function, frequency response.
⚡ Dual Amplifier Rebuild Full recap of woofer (70W) and tweeter (30W) amplifier modules.
🔈 5-Inch Mid/Bass Driver Service Replace foam surround, test voice coil, verify cone integrity.
🎛️ Crossover & Input Board Recap Replace all electrolytic capacitors in signal path and power supply.
🔄 Power Link & Auto-Sense Repair Repair communication circuit, replace opto-isolators, test auto-on/off.
📊 Calibration & Listening Test Verify left/right matching, frequency response, overall sound quality.
🏆 COMPLETE FULL RESTORATION All services above – your BeoLab 8000s will sound like new.
📋 A NOTE FROM MY WORKBENCH: The BeoLab 6000 (1996-2005) shares much of its DNA with the 8000 but uses a smaller 4-inch driver. Foam rot on this driver is nearly universal after 15+ years. The amplifier modules are similarly susceptible to capacitor aging. I treat each speaker individually, matching left and right performance.
⚠️ CRITICAL WARNING – BEO-LAB 6000 COMMON ISSUES: (1) 4-inch driver foam surround failure – very common. (2) Capacitor failure in the 50W + 30W amplifier boards. (3) Power Link auto-sense circuit failure.
Complete BeoLab 6000 Restoration Services
🔍 Full Diagnostic & Testing Complete amplifier and driver evaluation, Power Link test.
⚡ Dual Amplifier Rebuild Full recap of woofer (50W) and tweeter (30W) amplifier modules.
🔈 4-Inch Mid/Bass Driver Service Replace foam surround, test voice coil, ensure proper excursion.
🎛️ Crossover & Input Board Recap Replace all electrolytic capacitors in signal path.
🔄 Power Link & Auto-Sense Repair Repair communication circuit, replace opto-isolators.
📊 Calibration & Listening Test Verify frequency response and stereo matching.
🏆 COMPLETE FULL RESTORATION All services above – your BeoLab 6000s restored to factory performance.
📋 A NOTE FROM MY WORKBENCH: The BeoLab 4000 (1997-2007) is the smaller active bookshelf in the BeoLab lineup. Despite its size, it delivers impressive bass when properly restored. The 4-inch driver foam surround is a known failure point, and the amplifier boards use the same capacitor types as the 6000 and 8000. I also see Power Link opto-isolator failures frequently.
⚠️ CRITICAL WARNING – BEO-LAB 4000 COMMON ISSUES: (1) 4-inch driver foam surround rot – very common. (2) Amplifier capacitor failure leading to weak or distorted sound. (3) Power Link auto-sense failure – speaker won't turn on/off correctly.
Complete BeoLab 4000 Restoration Services
🔍 Full Diagnostic & Testing Amplifier health, driver impedance, Power Link function.
⚡ Dual Amplifier Rebuild Full recap of woofer (50W) and tweeter (30W) amplifier modules.
🔈 4-Inch Mid/Bass Driver Service Replace foam surround, test voice coil, verify compliance.
🎛️ Crossover & Input Board Recap Replace all electrolytic capacitors in signal path.
🔄 Power Link & Auto-Sense Repair Repair communication circuit, replace opto-isolators.
📊 Calibration & Listening Test Verify frequency response and stereo matching.
🏆 COMPLETE FULL RESTORATION All services above – your BeoLab 4000s restored to original specs.
Component Overhaul Database – BeoLab 8000 / 6000 / 4000
⚠️ Typical restoration per speaker: 30-40 electrolytic capacitors replaced + driver foam surround + Power Link repair.
⚡ AMPLIFIER MODULES (Shared across all three models)
| Component | Original Type | My Restoration Replacement |
|---|
| Main Filter Caps (Woofer PS) | 2,200-4,700µF @ 35-50V | High-ripple, 105°C (Nichicon KG / Panasonic) |
| Power Supply Decoupling | 47-1000µF @ 16-50V | Low ESR, 105°C (Panasonic FC / Nichicon PW) |
| Signal Path Caps | 1-47µF @ 16-25V | Audio Grade (Nichicon FG / Elna Silmic II) |
| Tweeter Amplifier Caps | 10-470µF @ 16-35V | Low ESR, 105°C, long life |
🔈 MID/BASS DRIVER FOAM SURROUND
| Model | Driver Size | Issue | My Solution |
|---|
| BeoLab 8000 | 5-inch | Foam surround rot, cracking | Replace with factory-spec foam surround |
| BeoLab 6000 | 4-inch | Foam surround rot, cracking | Replace with factory-spec foam surround |
| BeoLab 4000 | 4-inch | Foam surround rot, cracking | Replace with factory-spec foam surround |
🔄 POWER LINK INPUT BOARD
| Component | Action | Specification |
|---|
| Opto-isolators | Test & Replace | Common failure – replace with new |
| Electrolytic Caps | Replace All | Low ESR, 105°C (Nichicon PW) |
| Transistors | Test & Replace | Replace if failed |
🔧 Troubleshooting Your BeoLab 8000/6000/4000 – From My Workbench
💡 ISSUE #1: No Sound / Speaker Dead
- Most likely cause: Failed electrolytic capacitors in the amplifier module.
- My fix: Complete amplifier recap – replace every electrolytic capacitor on both woofer and tweeter boards.
- Also check: Blown driver (test voice coil with multimeter), blown fuse on power supply.
💡 ISSUE #2: Distorted Bass / Rattling
- Most likely cause: Foam surround on the mid/bass driver has disintegrated.
- My fix: Remove old rotten foam, clean thoroughly, install new factory-spec foam surround.
- How to check: Gently push the cone – if it moves unevenly or you hear scraping, the surround is bad.
💡 ISSUE #3: Speaker Won't Turn On/Off (Power Link Issues)
- Most likely cause: Failed opto-isolators on the Power Link input board.
- My fix: Replace opto-isolators and recap the input board.
- Workaround: Can be used with standard line-level inputs – I can test this function.
💡 ISSUE #4: Weak Bass / Thin Sound
- Possible causes: Bad capacitors in amplifier, damaged foam surround, incorrect placement.
- My diagnosis: I test frequency response and measure output level.
- My fix: Recap amplifier, replace foam surround, verify crossover/EQ settings.
💡 ISSUE #5: Humming / Hissing from Speaker
- Most likely cause: Bad main filter capacitors in the power supply.
- My fix: Replace main filter caps with high-ripple, low-ESR types.
- Also check: Ground connections and input cable shielding.
Specifications Comparison – BeoLab 8000 / 6000 / 4000
| Parameter | BeoLab 8000 | BeoLab 6000 | BeoLab 4000 |
|---|
| Woofer Amplifier Power | 70W | 50W | 50W |
| Tweeter Amplifier Power | 30W | 30W | 30W |
| Woofer Size | 5-inch | 4-inch | 4-inch |
| Tweeter Size | ¾-inch | ¾-inch | ¾-inch |
| Frequency Response | 55Hz - 22kHz | 60Hz - 22kHz | 65Hz - 22kHz |
| Inputs | Power Link, Line (RCA) | Power Link, Line (RCA) | Power Link, Line (RCA) |
| Production Years | 1992-2006 | 1996-2005 | 1997-2007 |
Nationwide Service – We Ship Speakers Across America
🇺🇸 NATIONWIDE SERVICE AVAILABLE 🇺🇸
Ship your BeoLab speakers securely to my Los Angeles facility – I serve customers across all 50 states
I've restored BeoLab 8000, 6000, and 4000 speakers for clients nationwide. I provide detailed packing instructions to ensure safe shipping.
Frequently Asked Questions – BeoLab 8000 / 6000 / 4000
❓ What are the most common problems with BeoLab 8000/6000/4000?
The top issues are: (1) foam surround rot on the mid/bass driver, (2) amplifier capacitor failure, and (3) Power Link communication problems. My restoration addresses all three.
❓ How long does a full restoration take for a pair?
Typically 2-3 weeks depending on parts availability. Rush service available.
❓ Do you offer nationwide service?
Yes! I serve customers across all 50 states with secure shipping instructions.
❓ Can you fix the Power Link auto-sense issue?
Yes – I specialize in Power Link repair. I replace opto-isolators and recap the input board.
❓ Do you have replacement foam surrounds for the 4-inch and 5-inch drivers?
Yes – I use high-quality factory-spec foam kits specifically designed for each model.
❓ Do you warranty your work?
Yes, 90-day warranty on all parts and labor. I stand behind every restoration.
