π A NOTE FROM MY WORKBENCH: The Bang & Olufsen BeoLab 1 is a sophisticated active loudspeaker. It uses a unique hybrid amplifier configuration: a high-power ICEpower Class D amplifier for the bass driver (450W) and separate, field-serviceable Class AB modules for the midrange (125W) and tweeter (125W)[reference:0]. My restoration approach respects this hybrid design, focusing on repairing the accessible AB amplifier modules and replacing the sealed ICEpower unit if faulty.
β οΈ CRITICAL WARNING β BeoLab 1 SPECIFIC: This speaker contains high-voltage circuits. While the midrange and tweeter amplifiers are repairable at the component level, the bass amplifier is a sealed ICEpower module[reference:1]. If this module fails, it must be replaced. I always ensure safe discharge of power supply capacitors before any service work begins.
About the Bang & Olufsen BeoLab 1 & My Approach

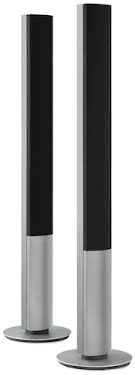

The BeoLab 1, produced from roughly 2000 to 2006, was Bang & Olufsen's flagship active loudspeaker[reference:2]. It features a three-way sealed cabinet design. My restoration process is tailored to its specific, hybrid architecture:
- Bass Amplifier: A 450W ICEpower Class D module[reference:3]. If it fails, I source and replace the entire module.
- Midrange & Treble Amplifiers: Two 125W Class AB modules that I can service at a component level (recapping, transistor replacement, etc.)[reference:4].
- Acoustic Lens Technology (ALT): I service and calibrate the motorized ALT mechanism to ensure correct 180Β° sound dispersion and silent operation[reference:5].
- Adaptive Bass Linearization (ABL): I verify and calibrate the microphone-based ABL system that adapts the bass response to the room[reference:6][reference:7].
β
WHY TRUST TEK MEDIA GROUP WITH YOUR B&O BEO-LAB 1:
- 30+ Years of High-End Audio Restoration Experience.
- Specialized knowledge of the BeoLab 1's unique hybrid amplifier architecture.
- Component-level repair on the Class AB midrange and treble amplifiers.
- Acoustic Lens Technology (ALT) motor service & calibration.
- Adaptive Bass Linearization (ABL) system verification.
- Driver service (dual 6.5-inch woofers, 3-inch midrange, 1-inch tweeter).
- Access to replacement drivers, belts, and sealed ICEpower modules.
- 100% Personal Attention β No Assembly Line.
- 90-Day Warranty on All Work.
- Nationwide Service β Secure Shipping Available Across All 50 States.
- Direct Email: jt@tekmg.com for quick responses.
Complete Bang & Olufsen BeoLab 1 Restoration Services I Offer
π Full Diagnostic & Evaluation Complete functional assessment, benchmark testing of all three amplifier channels (bass ICEpower, mid AB, treble AB), ALT mechanism inspection, and ABL system verification.
β‘ Power Supply Diagnostics & Repair Identify and resolve issues with the main power supply and distribution to the three independent amplifier modules.
π Class AB Amplifier Module Service (Mid/Tweeter) Full recap of the 125W midrange and 125W treble amplifier modules, replacement of failed output transistors, diode checks, and precision bias adjustment.
β‘ ICEpower Bass Module Replacement If the 450W ICEpower module fails, I source and professionally replace it, as it is a sealed, non-serviceable unit.
ποΈ Adaptive Bass Linearization (ABL) Service Verify the operation of the ABL microphone and circuit, recalibrate the system to ensure accurate room-adaptive bass response.
π Acoustic Lens Technology (ALT) Service Motor inspection, belt and gear replacement if worn, full cleaning and lubrication of the lens guide rails, and end-point calibration for silent operation.
π Driver Service Test dual 6.5-inch woofers, 3-inch midrange driver, and 1-inch tweeter. Replace foam surrounds if necessary, or source genuine replacement drivers.
π COMPLETE FULL RESTORATION All services above β your BeoLab 1 speakers will perform to original factory specifications.
π‘ HOW I RESTORE YOUR BEO-LAB 1: Full diagnostic of all amplifier channels β’ Component-level repair of AB mid/high modules β’ Replacement of sealed ICEpower bass module (if faulty) β’ ALT lens calibration β’ ABL verification β’ Driver testing & repair.
Bang & Olufsen BeoLab 1 β Restoration Database
β οΈ The BeoLab 1 uses a hybrid amplifier design. The midrange and treble amplifiers can be recapped, but the bass amplifier is a sealed ICEpower module that is replaced, not serviced, if it fails.
π AMPLIFIER CONFIGURATION (Per Speaker)
| Section | Technology | Power Output | My Restoration Approach |
|---|
| Bass Amplifier
| ICEpower Class D (Sealed Module)
| 450W @ 4Ξ©
| If faulty: Diagnose and source a replacement module.
|
| Midrange Amplifier
| Class AB (Discrete Components)
| 125W @ 8Ξ©
| Component-level rebuild: recap, check bias, test/replace output transistors.
|
| Treble Amplifier
| Class AB (Discrete Components)
| 125W @ 8Ξ©
| Component-level rebuild: recap, check bias, test/replace output transistors.
|
ποΈ ACTIVE SYSTEMS
| System | Function | My Service Procedure |
|---|
| Acoustic Lens (ALT)
| Full-range, 180Β° horizontal sound dispersion
| Service motor, replace mechanical drive belt, clean/lubricate rails, calibrate end-points.
|
| Adaptive Bass Linearization (ABL)
| Volume-dependent loudness compensation and microphone-based room adaptation
| Verify microphone operation, test logic circuit response to test tones, recalibrate signal path.
|
π§ Professional Troubleshooting Tips β From My Workbench
π‘ TIP #1: No Power / Dead Speaker
- Check the main fuse on the power supply board.
- If the speaker is completely unresponsive, a short in the sealed ICEpower bass module is a common cause. I can diagnose this by isolating the module.
- If the power supply is faulty, I will repair it individually.
- I test all standard voltage rails during my diagnostic.
π‘ TIP #2: Failing Acoustic Lens
- A common failure is a snapped or stretched drive belt. I replace it with a high-quality, factory-spec equivalent.
- If the lens is noisy, the guide rails require cleaning and fresh lubrication.
- For motors that have seized, I source and replace the motor unit and recalibrate the end stops.
π‘ TIP #3: The "No Bass" Issue
- If you have sound from the midrange and treble but no bass, the sealed ICEpower module is likely the cause.
- I cannot repair these modules. My approach is to source and replace the faulty unit to restore full performance.
- If the bass is weak, the issue might be the ABL microphone or its circuit, not the amplifier itself.
π‘ TIP #4: Hum or Distortion
- If the problem is in one of the midrange or treble channels, the relevant Class AB module is repairable.
- Hum often indicates failed filter capacitors in the power supply or the output section of a Class AB amplifier. I replace all electrolytic caps in these modules with high-quality, low-ESR types.
- General system hum or noise could be from the main power supply. I will test and rebuild it if necessary.
π‘ TIP #5: My Restoration Philosophy
- Don't replace perfectly functional sealed modules. My goal is to preserve original parts where it's technically sound to do so.
- I use only premium, high-temperature, low-ESR capacitors for repairs on the Class AB modules and power supply.
- When replacement is the only option (e.g., a failed sealed ICEpower unit, a torn tweeter, or broken gear), I source genuine parts or the highest-quality equivalents available.
- All mechanical systems, like the ALT, require regular maintenance. I provide a full service of this mechanism to ensure its long-term reliability.
β οΈ IMPORTANT NOTE FROM MY WORKBENCH: The BeoLab 1 contains high-voltage circuits. The amplifier modules can hold a charge. Always have your speaker serviced by a qualified technician. I have over 30 years of experience and follow all necessary safety procedures.
π Quick Troubleshooting Reference Chart β From My Service Logs
| Symptom | Most Likely Cause | My Fix / Solution |
|---|
| No power, no LED
| Blown fuse, dead sealed ICEpower module, dead power supply
| Check fuse, isolate and test sealed module, diagnose power supply.
|
| No sound from any driver
| Input board failure, main power supply issue
| Diagnose and repair the input board or main power supply.
|
| No Bass (Mid/Treble working)
| Sealed ICEpower bass module failed
| Replace the non-serviceable ICEpower module.
|
Distortion / No sound from Mid or Treble
Class AB amplifier module failure
| Recap the failed module, replace faulty transistors, rebias.
|
| Acoustic Lens stuck / noisy
| Broken belt, dry rails, failed motor
| Replace belt, clean/lubricate rails, test/replace motor, recalibrate.
|
| ABL system not adapting
| Dirty or failed microphone, circuit fault
| Clean or replace microphone, diagnose and repair the ABL circuit.
|
| Overall weak/distorted sound
| Dried-out electrolytic capacitors in power supply or AB amplifier modules
| Full recap of the power supply and all AB amplifier modules.
|
Bang & Olufsen BeoLab 1 Specifications
| Parameter | Specification |
|---|
| Amplifier Technology
| Bass: ICEpower Class D, Mid/Treble: Class AB[reference:8]
|
| Amplifier Power (Total per speaker)
| Bass: 450W / 4Ξ©, Midrange: 125W / 8Ξ©, Treble: 125W / 8Ξ©[reference:9]
|
| Woofers
| Dual 6.5-inch drivers (165 mm)[reference:10]
|
| Midrange Driver
| 3-inch driver (76 mm)[reference:11]
|
| Tweeter Driver
| 1-inch driver (25 mm)[reference:12]
|
| Frequency Response
| 39 Hz β 20,000 Hz[reference:13]
|
| Max. Sound Pressure Level
| 105 dB SPL (stereo, pair)[reference:14]
|
| Dimensions (H x W x D)
| 1843 x 398 x 398 mm (72.6 x 15.7 x 15.7 in)[reference:15]
|
| Weight per speaker
| Approx 36 kg (79 lbs)[reference:16]
|
Nationwide Service β We Ship Speakers Across America
πΊπΈ NATIONWIDE SERVICE AVAILABLE πΊπΈ
Ship your Bang & Olufsen BeoLab 1 speakers securely β I serve all 50 states
I've restored BeoLab 1 speakers for clients nationwide:
- Secure Packaging: I'll provide detailed packing instructions for these heavy, 36 kg speakers.
- Insured Shipping: I recommend fully insured shipping for your valuable speakers.
- Nationwide Reach: No matter where you are in the United States, I can restore your speakers to factory specifications.
- Direct Contact: Email me at jt@tekmg.com for a quick quote or consultation.
Frequently Asked Questions β Bang & Olufsen BeoLab 1
β What is the most common failure in the BeoLab 1?
The two most common issues are the Acoustic Lens (ALT) drive belt wearing out and failure of the sealed ICEpower bass module.
β Can you fix the bass amplifier if it fails?
I can diagnose it, but the ICEpower module is a sealed unit and cannot be repaired at the component level. My service is to source and replace the entire module.
β What is the ABL system for?
Adaptive Bass Linearization uses a built-in microphone to measure the room's acoustic response and adjust the speaker's bass output accordingly for optimal sound[reference:17].
β Do you offer nationwide service?
Yes, I serve customers across all 50 states with secure shipping instructions.
β Do you warranty your work?
Yes, I offer a 90-day warranty on all parts and labor.
